Transport system to the test room

written: 19.07.2017
The transport system ensures the supply and removal of stator windings to and from the test room.

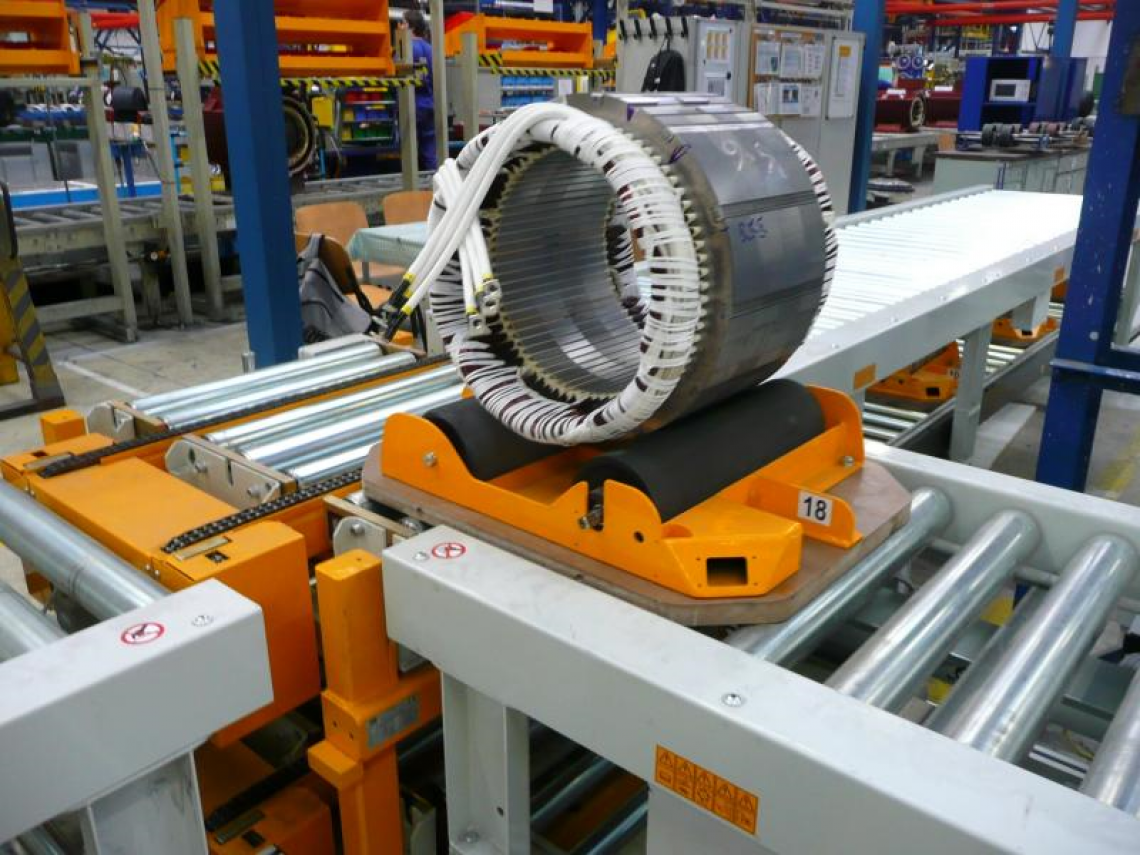

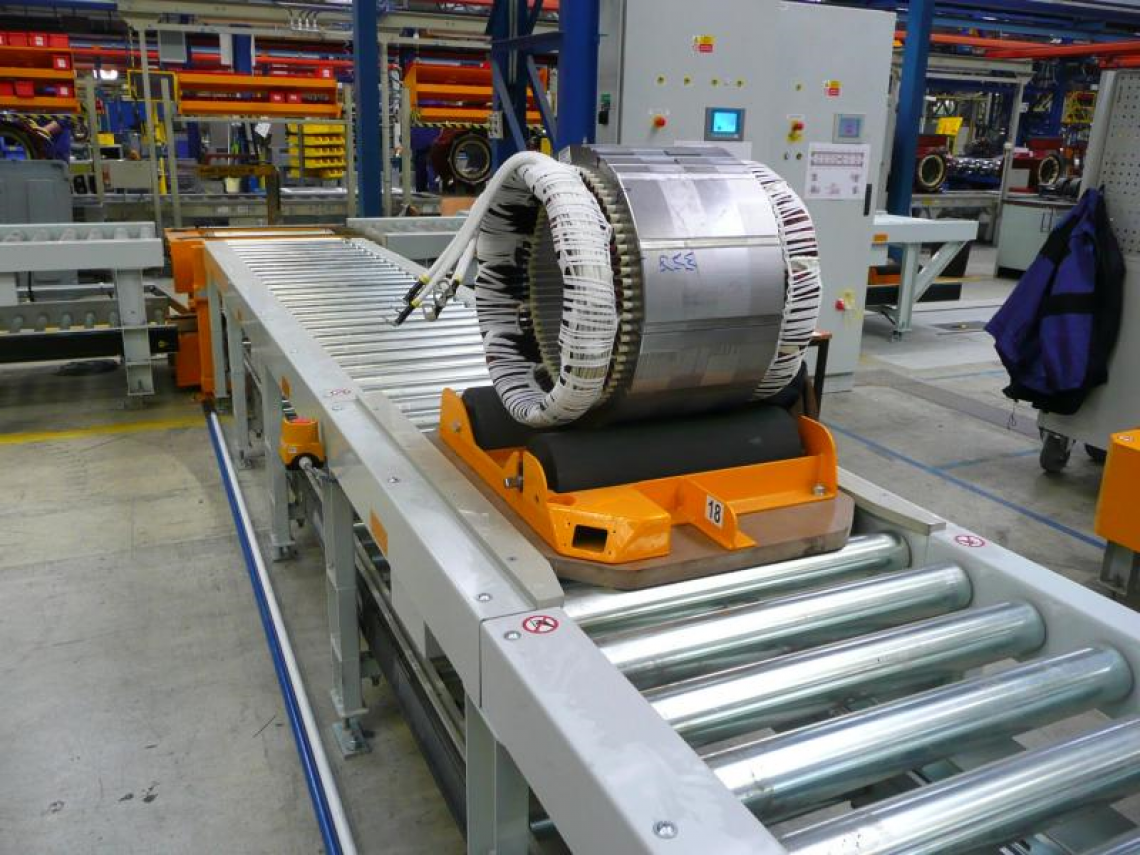

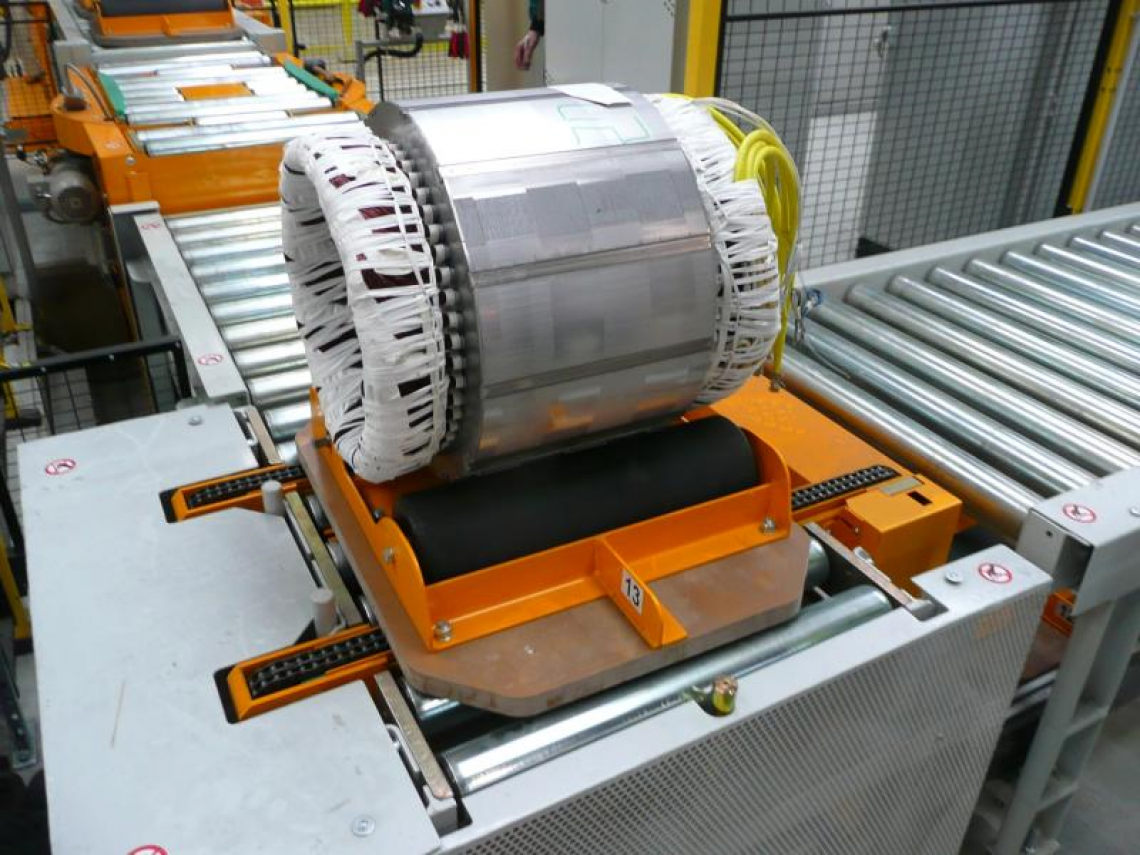

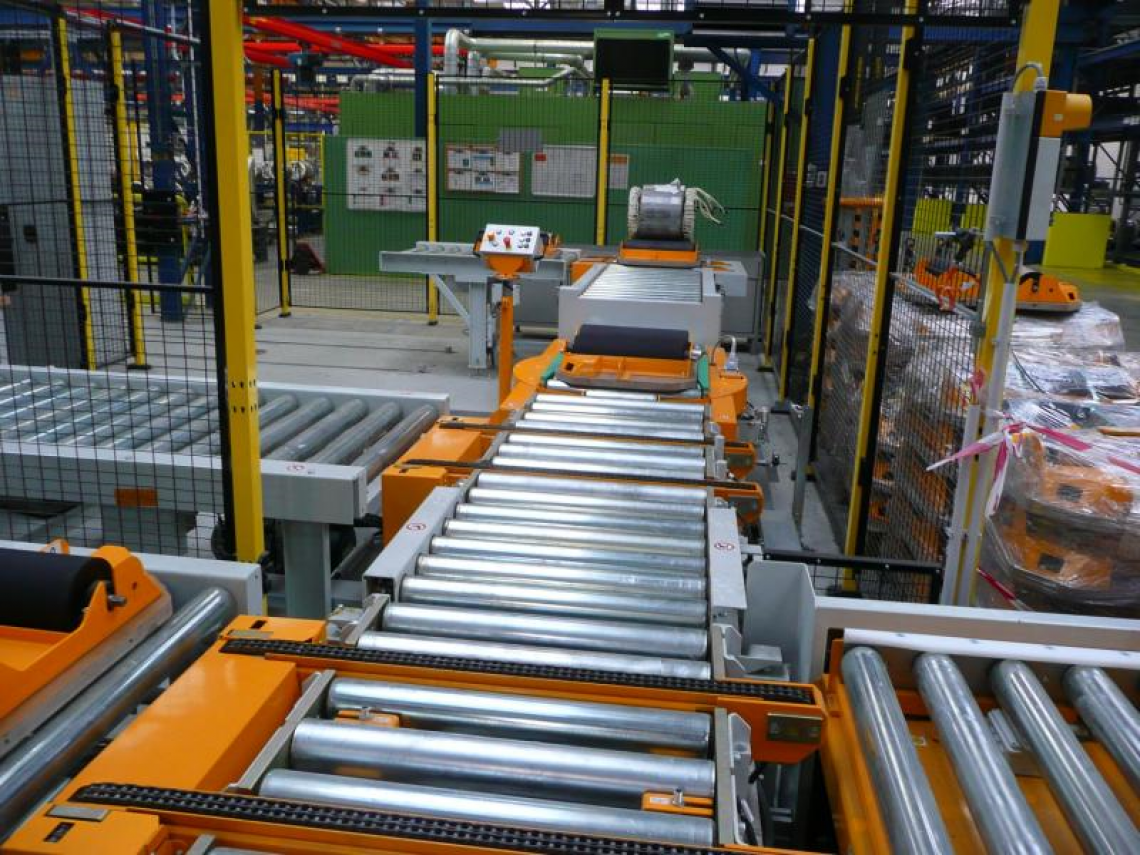

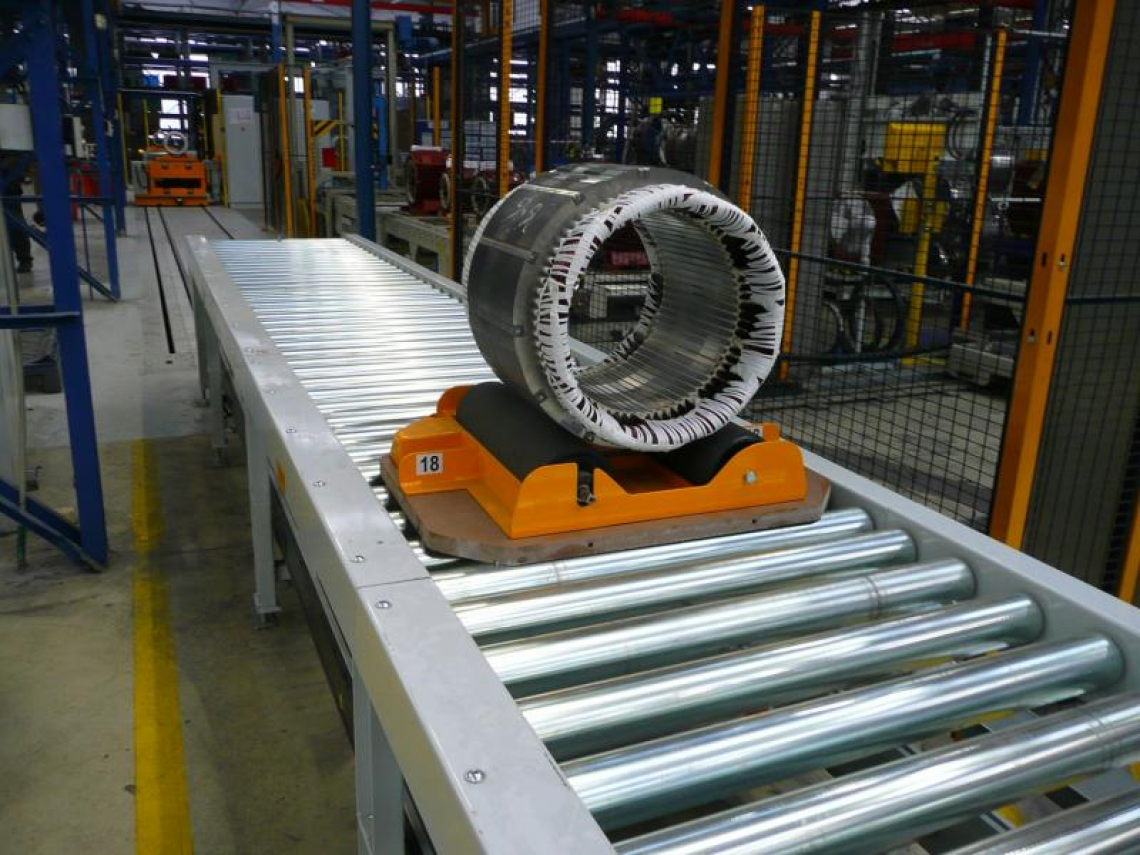

The stator winding is transported on pads that allow transport as standard on roller conveyors and combined on chain crossings. The loaded pads are transported with stator packages on roller conveyors from the loading place to the transport trolley and by the trolley along the rail to the test room.

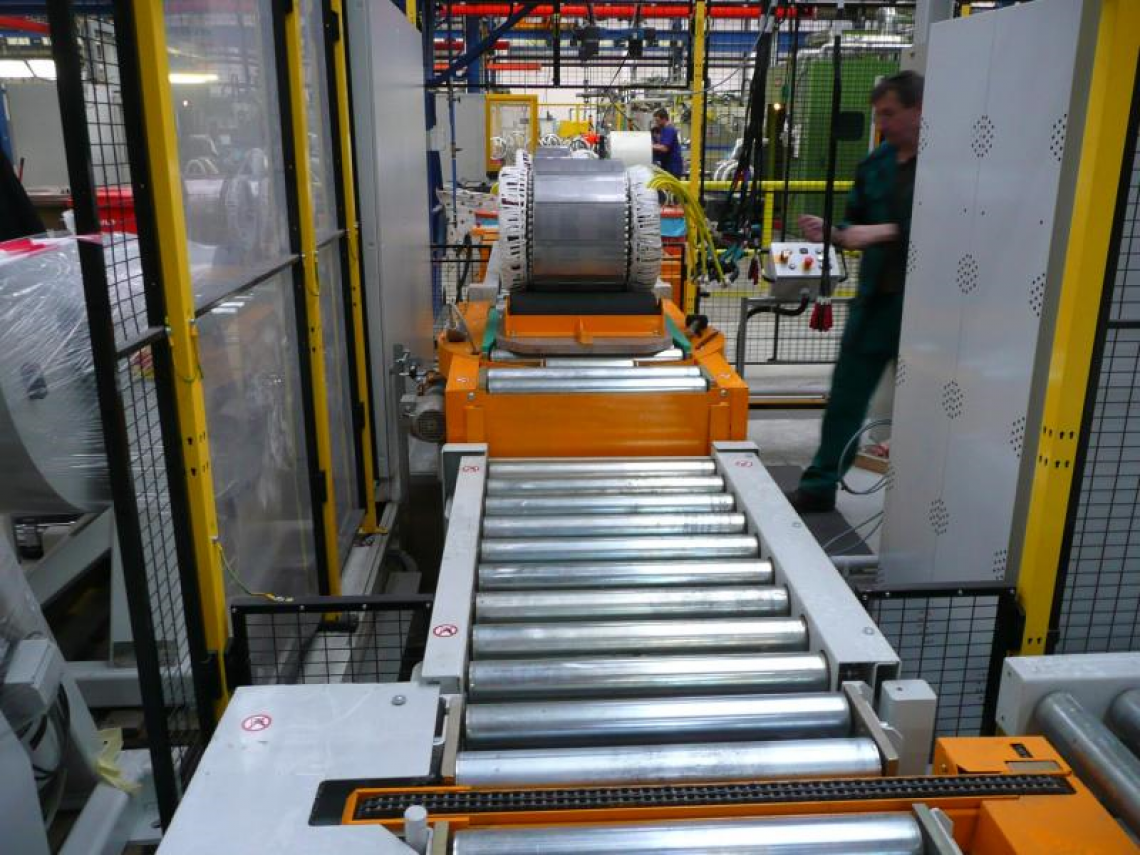

In the test room, the operator raises the washer with the stator winding to an ergonomic height, checks and performs measurements. Subsequently, the pad with the winding is sent to the outlet of the test room to the sampling point for impregnation. After emptying from the winding, the pad returns to the loading station with the lower branch. All operations take place at ergonomic heights so as to ensure maximum safety and hygiene for the operators.

The whole transport system is composed of the following devices:

  • 2 x 1 roller roller conveyor on a lift,

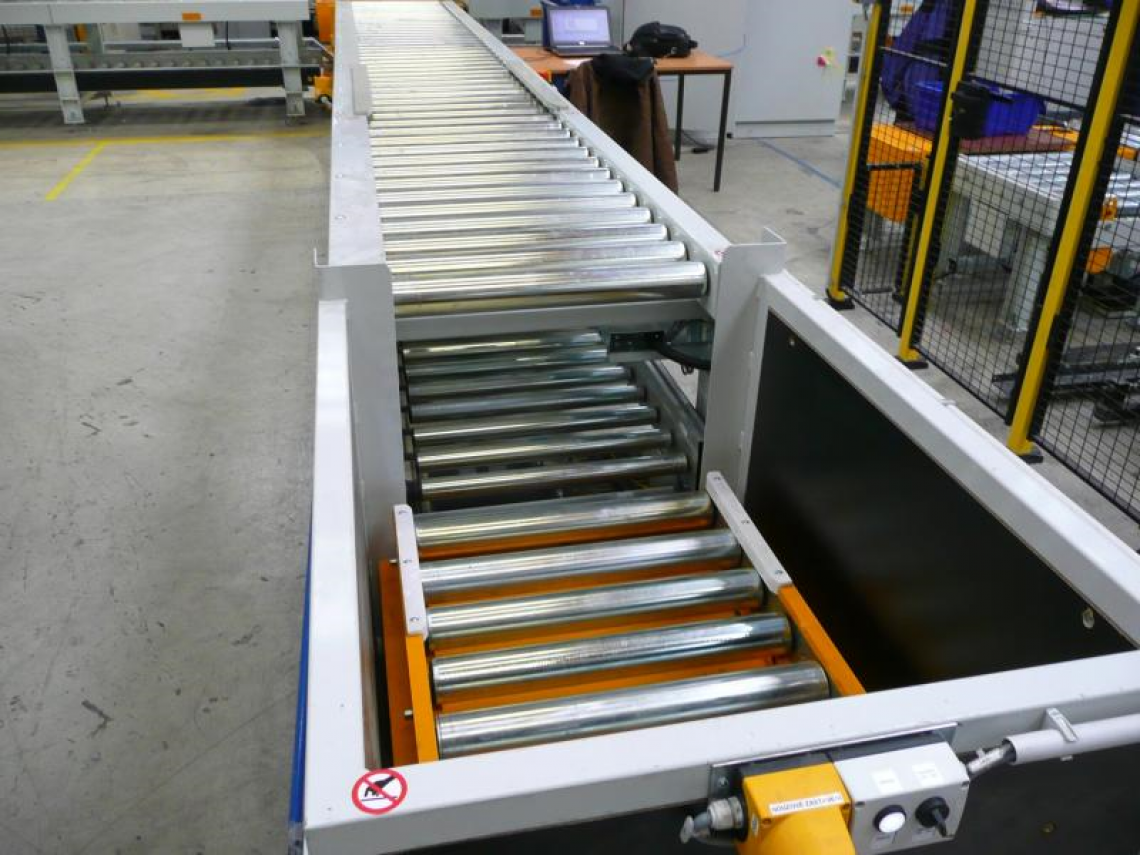

  • 1 x 8 m two-level roller conveyor,

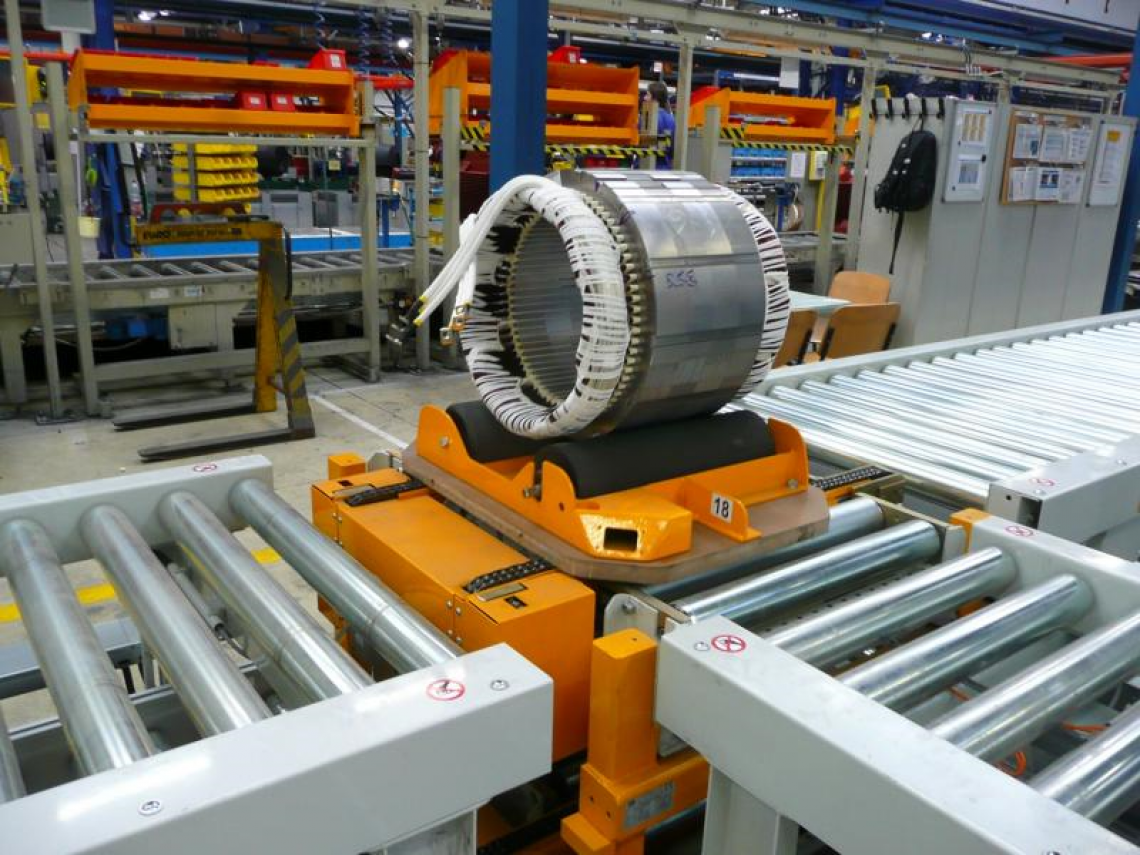

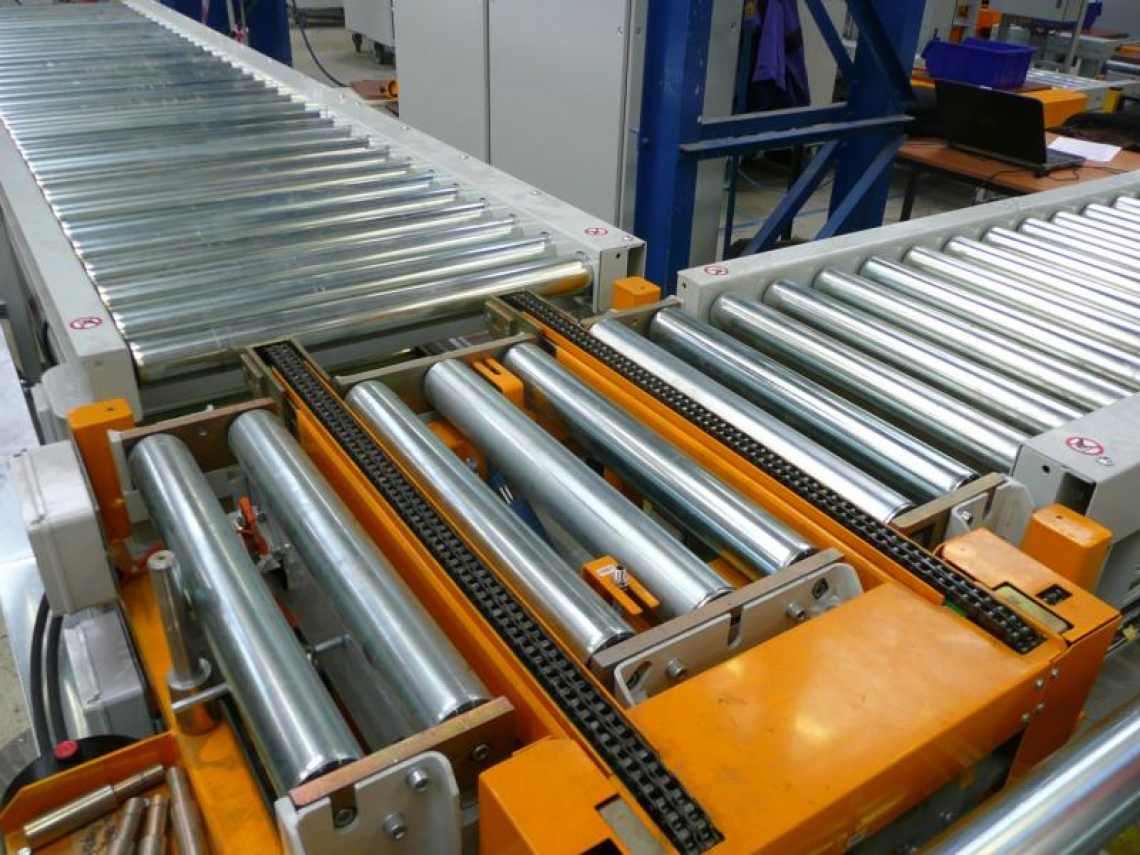

  • 3 x 1 pc cross transition roller-chain two-level,
  • 1 x 5 m two-level roller conveyor,

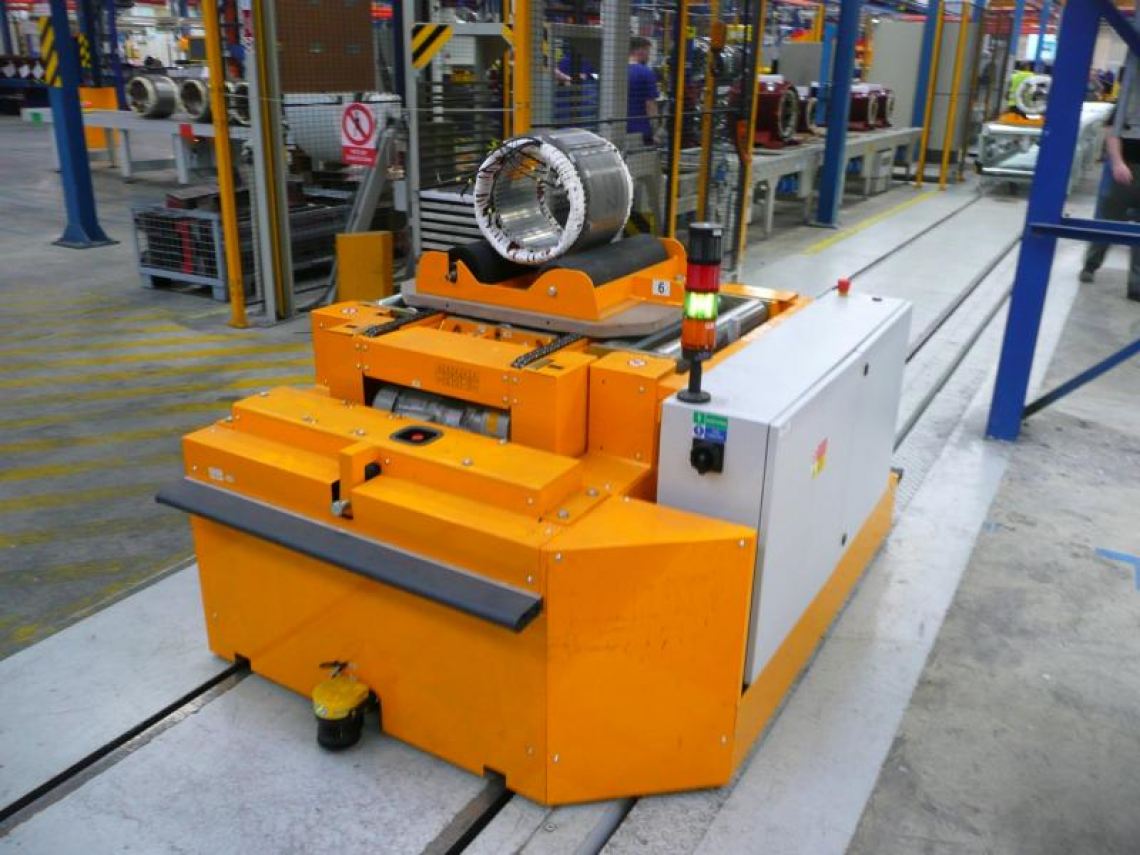

  • 1 x two-level transport trolley,
  • 1 x running track 20 m,
  • 1 x two-level roller conveyor on a lift,
  • 1 x roller conveyor on the lift,
  • 1 x 8 m two-level roller conveyor,
  • 1 x 8 m single level roller conveyor,
  • 1 x fencing 25 m.
